flutter web编译瘦身

缩减字体文件

美团的 图标字体精简

当访问 FlutterWeb 页面时，即使在业务代码中并未使用 Icon 图标，也会加载一个 920KB 的图标字体文件：MaterialIcons-Regular.woff。通过探究，我们发现是 Flutter Framework 中一些系统 UI 组件（如：CalendarDatePicker、PaginatedDataTable、PopupMenuButton 等）使用到了 Icon 图标导致，且 Flutter 为了便于开发者使用，提供了全量的 Icon 图标字体文件。

Flutter 官方提供的 --tree-shake-icons 命令选项是将业务使用到的 Icon 与 Flutter 内部维护的一个缩小版字体文件（大约 690KB）进行合并，能一定程度上减小字体文件大小。而我们需要的是只打包业务使用的 Icon，所以我们对官方 tree-shake-icons 进行了优化，设计了 Icon 的按需打包方案：

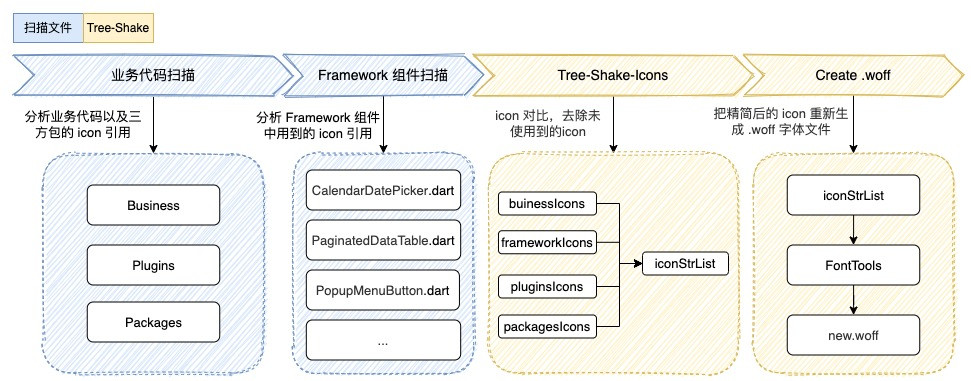

图23 图标字体精简

1. 扫描全部业务代码以及依赖的 Plugins、Packages、Flutter Framework，分析出所有用到的 Icon；
2. 把扫描到的所有 Icon 与 material/icons.dart（该文件包含 Flutter Icon 的 unicode 编码集合）进行对比，得到精简后的图标编码列表：iconStrList；
3. 使用 FontTools 工具把 iconStrList 生成字体文件 .woff，此时的字体文件仅包含真正使用到的 Icon。

使用

flutter build web --web-renderer html --tree-shake-icons

报错

This application cannot tree shake icons fonts. It has non-constant instances of IconData at the following locations:
  - file:///Users/hss/dev/flutter-3.7.0/packages/flutter/lib/src/widgets/icon_data.dart:20:9
  - file:///Users/hss/.pub-cache/hosted/pub.dev/font_awesome_flutter-10.4.0/lib/src/icon_data.dart:9:9
  - file:///Users/hss/.pub-cache/hosted/pub.dev/font_awesome_flutter-10.4.0/lib/src/icon_data.dart:21:9
  - file:///Users/hss/.pub-cache/hosted/pub.dev/font_awesome_flutter-10.4.0/lib/src/icon_data.dart:33:9
  - file:///Users/hss/.pub-cache/hosted/pub.dev/font_awesome_flutter-10.4.0/lib/src/icon_data.dart:46:9
  - file:///Users/hss/.pub-cache/hosted/pub.dev/font_awesome_flutter-10.4.0/lib/src/icon_data.dart:66:9
  - file:///Users/hss/.pub-cache/hosted/pub.dev/font_awesome_flutter-10.4.0/lib/src/icon_data.dart:79:9
Target web_release_bundle failed: Exception: Avoid non-constant invocations of IconData or try to build again with --no-tree-shake-icons.

官方issuse: https://github.com/flutter/flutter/issues/57181

解决方式: 编译Android,然后替换调web编译里的字体文件:

For those who are looking for a quick fix can try this (opens new window) approach.

Step 1: Release an apk file with tree shake by using flutter build apk --release --tree-shake-icons Step 2: Go to /build/app/intermediates/assets/release/mergeReleaseAssets/flutter_assets/fonts/MaterialIcons-Regular.otf Step 3: Make sure it's size is in KBs Step 4: Copy that file and keep it on your desktop Step 5: Build your web app and replace the large file web/assets/fonts/MaterialIcons-Regular.otf

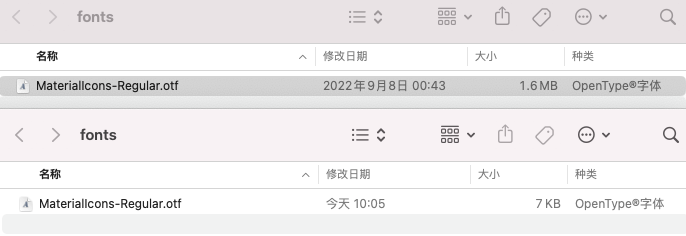

_This droped my icon size from 1.6MB to 2KB I used only 10 icons in the whole project

Tips: For a quick action, try to automate this process using makefile (opens new window)

Hope this helps someone.

一键打包和替换脚本:

import 'dart:io';

import 'package:process_run/shell.dart';
/// 终极形态: 一键发布所有包,不用手动发布
main()  async {
  //buildAndroid();

  //packMacos();
  packWeb();

}


Future<void> packWeb() async {
  String fontPath = "${Directory.current.path}/build/app/intermediates/assets/release/mergeReleaseAssets/flutter_assets/fonts/MaterialIcons-Regular.otf";

  File file = File(fontPath);
  if(!file.existsSync()){
    print("android 打包treeshake的字体文件不存在,重新打包Android");
    await buildAndroid();
    print("android 打包成功,开始继续打包web");
    packWeb();
  }else{
    print("android 打包treeshake的字体文件存在,直接打包web,打包后拷贝字体");
    await buildWeb();
    //web/assets/fonts/MaterialIcons-Regular.otf
    File target = File("${Directory.current.path}/build/web/assets/fonts/MaterialIcons-Regular.otf");
    file.copySync(target.path);
    print("拷贝字体文件成功: ${target.path}");
    //todo  windows上,将web文件夹打包成zip,然后部署到服务器上

  }

}

Future<void>  buildWeb(){
 return exeShell("flutter build web --web-renderer html");
  //--tree-shake-icons: 会报错. 解决方式: 先编译Android,然后编译web,将Android里的字体icon覆盖掉web里
}



Future<void> buildAndroid(){
 return exeShell("flutter build apk --release --tree-shake-icons");
}




Future<void> buildMacReal() async {
  await buildMacOs();
  packMacos();
}

Future<void> buildMacOs(){
  return exeShell("flutter build macos --release --tree-shake-icons");

}

Future<void> packMacos(){
  return exeShell("hdiutil create -volname chatgpt -srcfolder ${Directory.current.path}/build/macos/Build/Products/Release/MyChatAI.app"
      " -ov -format UDZO ${getPCUserPath()}/Downloads/MyChatAI-release.dmg");
}

String getPCUserPath() {
  //var platform = Platform.isWindows ? 'win32' : 'linux';
  var homeDir = Platform.environment['HOME'];
  //var userDir = Platform.environment['USERPROFILE'] ?? '$homeDir\\AppData\\Local';

 // return Directory('$userDir\\$platform\\flutter').path; // 此处以 Flutter 为例
  return homeDir??"/";
}


Future<void> exeShell(String cmd) async {
  var shell = Shell(runInShell: true);

  try{
      await shell.run(cmd);
  }catch(e,s){
    //print("error1:"+e.toString());
    throw e;
  }
}
